Explosive Ordnance Disposal Robot

Explosive Ordnance Disposal Robot

Explosive Ordnance Disposal Robot

Explosive Ordnance Disposal Robot
Explosive Ordnance Disposal Robot
Explosive Ordnance Disposal Robot
Basic information
Basic information
Model No. MR-300
Use of Product Transport and Disposal of Dangerous Articles and Explosives
Size 1100mm(L)× 800mm(W)× 650mm(H)
Weight 90 kg
Other Specifications Traveling Speed 10km/h, Lifting Weight 10kg, Robot Arm 6 DOF
Price $188,590.29 (It is an approx. selling price and may vary upon numbers, exchange rate, etc.)
Sales Site http://www.hanoolshop.com
Product Features

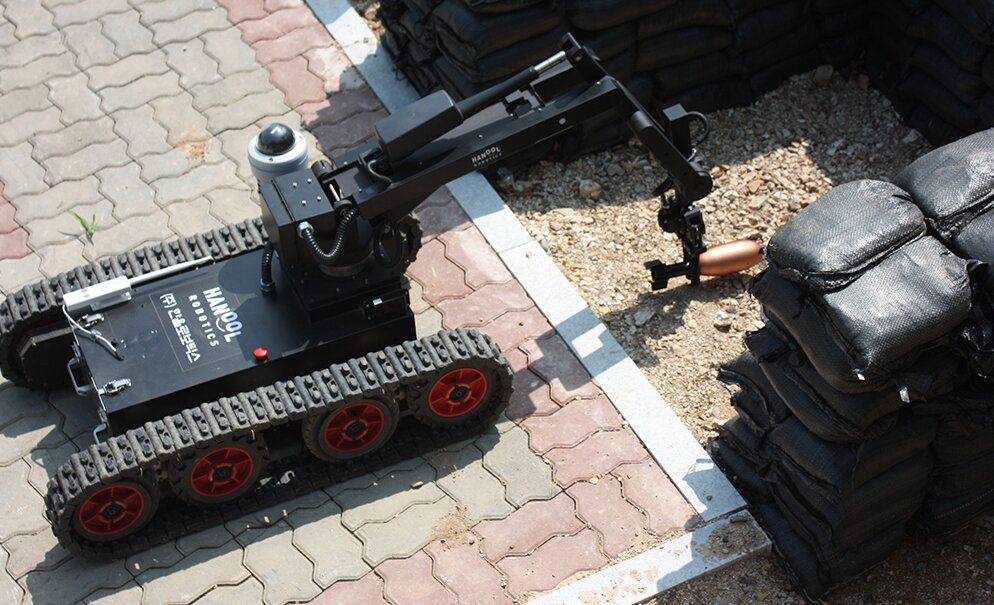

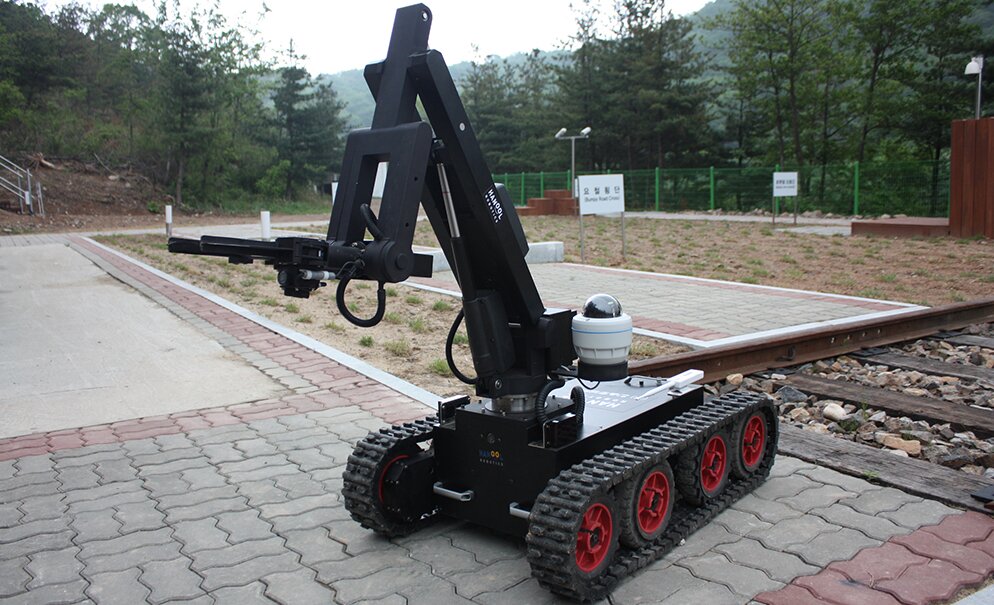

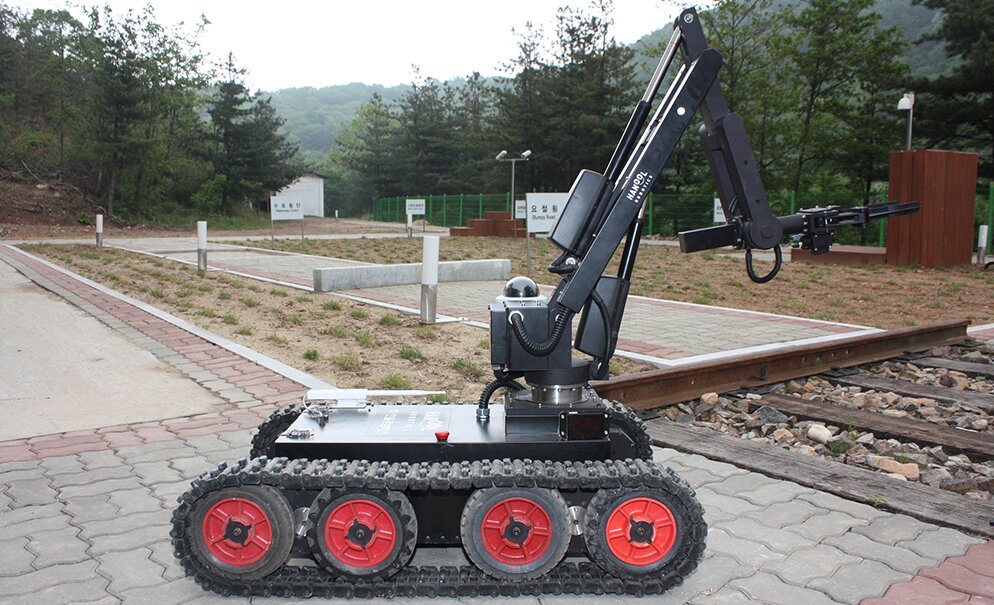

□ Practical Surveillance and Explosive Disposal Robot with Strength and Agility for Diverse Mission Situations

• Exhibiting superior performance to overcome obstacles with a variable single track structure for easy operation and maintenance

• Climbing stairway and slope upto 45°

• Supporting long distance telecommunication by applying communication relay system to overcome communication restriction situations under diverse environments

• Supporting audio data transmission/reception between robot operator and those around the robot by applying bidirectional audio system

• Providing wired/wireless communication control and supporting wired communication control upon jamming situation under communication environments

• Carrying out missions under low light level environments with 3 IR Cameras and 1 PTZ IR camera for expansion of range and supporting storage of mission image for image information

• Strong lifting capacity to lifting up to 10kg of dangerous article

• Lifting dangerous articles at various locations by applying 6 degrees of freedom of manipulator

• Max operation range of the manipulator: upper 1900mm, front 1200mm

• Providing various gripper tools to grasp upto 10cm in width for shapes of dangerous articles

• Providing convenient user interface with joystick control type

• Mounting various optional equipment to allow the robot to be utilized for multiple purposes

- 20mm/29mm water gun, shotgun, glass crusher, wire cutter, X-ray view finder, CBRN Detector

Product Videos

Practical Surveillance and Explosive Disposal Robot with Strength and Agility for Diverse Mission Situations

Organization Informaion
Organization Informaion
Company Name Hanool Robotics Co., Ltd. Department
Contact Park In-Jeong/ Team Leader E-Mail ijpark@robotics.co.krsend E-mail
Tel +82 70-8230-7476 Fax +82 32-328-4544
Service Hours 09:00  ~  18:00 Site http://www.robotics.co.kr
